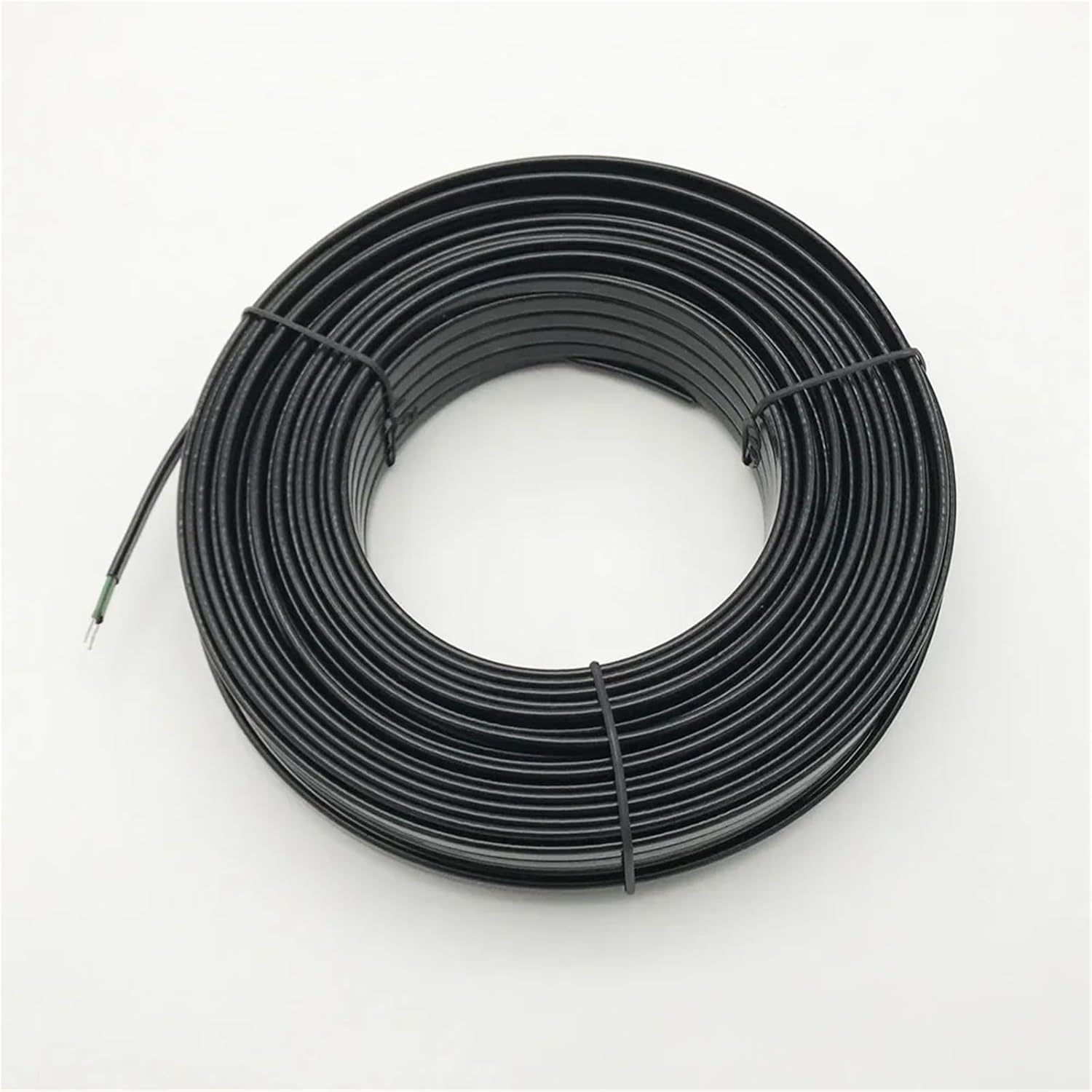

1-100m Tropical Belt 12V 24V 110V 220V Water Pipe Roof Anti Freezing Self-Adjusting Electric Heating Wire Heating Cable(100m,12V 15W)

Pipe Heat Cables1-100m Tropical Belt 12V 24V 110V 220V Water Pipe Roof Anti Freezing Self-adjusting Electric Heating Wire Heating CableSelf-regulating Working Principle:>> This cable is suitable for householddrinking water pipe, drain pipe freeze protection in winterand other heating applications.>> The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.>> The cable is with PE jacket, and inner has the PE composite insulation layer, better water-proof and .Technical Datas:Cable type: self-regulating heating cable1. Working voltage: 12V, 24V DC, 110V, 220V AC2. Rated power: 15W/m, 20W/m, 25W/m (at 10C degrees)3. Max maintain temperature: 65C degrees4. Max enduring temperature: 135C degrees5. Width * Thickness: 12V, 24V, 110V (8mm * 3mm); 220V (10mm * 3mm)6. Min bend radius: 15mm7. Conductor: tinned copper wire8. Jacket:PE9. Max circuit length: 220V,50m; 110V,30m; 24V,20m, 12V,5m.Structure:1. Copper conductor2. Conductive heating element3. Insideextra insulation4. PE outer sheathPRODUCTPhotos:Installation Steps:1) Seal the end of the cable with heat shrinkable tube or other electrical insulatingtape.DO NOT connect the two conductors together!2) Connect the other end with cold wire or (for connecting to the power supply).3) Wrapthe heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.5) Connect or into 12V, 24V, 100~120V, 220~240V (according to your cable). The heat trace system is finished.Tips: Max circuit length ~ 50 meters (220V);Max circuit length ~ 30 meters (110V);Max circuit length ~ 20 meters (24V);Max circuit length ~ 5 meters (12V)==========Voltage : 81-600V(include600V)Structure : Without modular telephone connectorsUse : Not TelecommunicationHigh-concerned chemical : NoneModel Number : DXW-J 730is_customized : YesApplication : heatingType : InsulatedConductor Type : StrandedConductor Material : CopperInsulation Material : PECertification : Certification : ,EACVoltage : 12V, 24V, 110V, 220VPower : 20w/m,25 w/m customizableThickness : 3mmWidth : 8~10mmCore wire size : 7*0.3mmApplication : defrost, snow melting, heat trace
