Adjustable DC Power Supply 0-60V 20A, CC Regulated Step Down Module, 1200W CNC Controller with LCD Display, Protocol, for DIY Solar Charging,

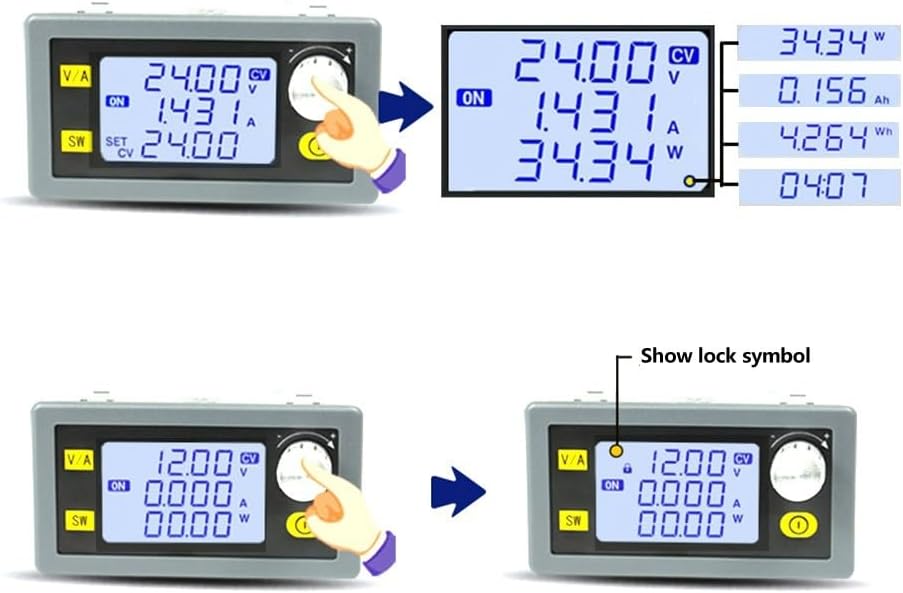

Features*This constant voltage constant current CNC DC automatic step-down power supply is very suitable for applications in fields such as solar charging, computer power modification, DIY desktop CNC small power supply, .*It is equipped with a full-view dedicated power supply LCD, large-screen display, the status is clear at a glance, easy to operate, and very smooth to use*The input voltage range of this power supply is 6.0-70.00V, the output voltage range is 0.0-60.00V, the output current range is between 0.0-20.00A, and the maximum output power is 1200W (the product is DC power supply, not AC 220V power supply)*It also has a variety of for protection mechanisms, such as under-voltage for protection, over-voltage for protection, over-current for protection, over-temperature for protection and over-power for protection, ., to for ensure safety during use.*On the running interface, a short press of the encoder button allows the user to easily view parameters such as power (W), capacity (Ah), energy (Wh) and time (h). In addition, for press and hold the encoder button for 2 seconds to lock the set voltage and current to prevent misuse; after locking, for press and hold the encoder button for 2 seconds to for unlock*Support serial communication, standard for Modbus protocol*The bottom board can be used independently. The output current is 0-20A. The output voltage can be set by the for dial switch, and the voltage can be set to fix the output: 5V/9V/12V/24V/36V/48V/60VSpecificationProduct name: CNC DC regulated power supplyProduct model: XY6020LInput voltage: 6.0~70VOutput voltage: 0.0-60VOutput current: 0~20.00AOutput ripple typical value: 100mv VPPOutput power: 0-1200WMaximum output voltage: (input voltage ÷ .) -2Input voltage measurement resolution: 0.01VOutput voltage setting measurement resolution: 0.01VCurrent setting measurement resolution: 0.01AInput voltage measurement accuracy: ±%+5 charactersOutput voltage setting and measurement accuracy: ±0.4%+ digitOutput current setting and measurement accuracy: ±0.5%+3 digitsCooling fan on: current>2A, power>50W, temperature>50℃The cooling fan is turned on and then turned off: current <.5A, power <45W, temperature <45°Cfor protection mechanismExternal temperature for protection: 0--110 ℃ default offInput overvoltage for protection: 71V defaultInput undervoltage for protection: 4.8-71V adjustable, default 4.8VOutput overvoltage for protection: 65V default 65VOutput overcurrent for protection: 0-22A default 22AOutput over-power for protection: 1250W default 1250WOver-temperature for protection: 60--110°C default 95°CTimeout for protection: 0-100H adjustable, default offOvercapacity for protection: 0~9999AH adjustable, default offSuper energy for protection: 0~9999WH adjustable, default offPacking list*CNC DC regulated power supply

• 【Adjustable DC regulated power supply】This CNC power supply supports constant voltage and constant current output. It has a wide input voltage range of 0-70.00V and an output voltage range of 0.0-60.00V. The maximum output power is 1200W.
• 【Full-view LCD display】Equipped with a dedicated power supply LCD, this power supply has a large-screen display that provides clear status information. It is easy to operate and offers a smooth user experience.
• 【Multiple protection mechanisms】This power supply is designed with various protection mechanisms, including under-voltage protection, over-voltage protection, over-current protection, over-temperature protection, and over-power protection. These features for ENSURE safe usage.
• 【Parameter display and lock function】The running interface allows users to easily view parameters such as power, capacity, energy, and time. The voltage and current settings can be locked to prevent misuse.
• 【Supports serial communication】This power supply supports serial communication and uses the standard for MODBUS protocol. It offers convenient connectivity and control options.
