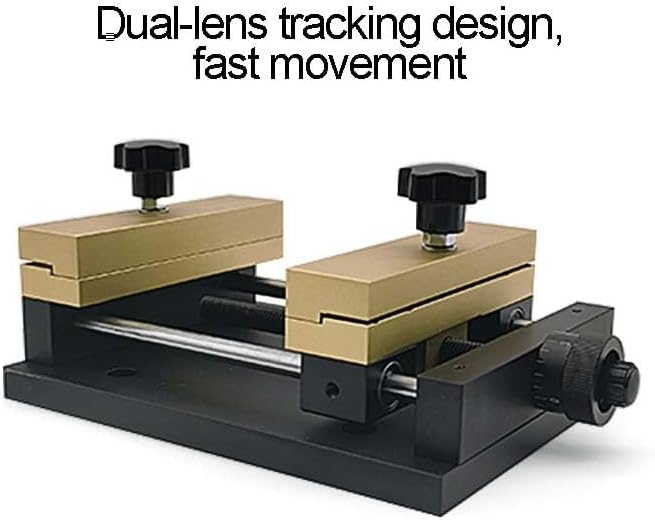

Small Flat Panel Clamp, Aluminum Alloy Fixture with 120X120mm Clamping Range, 0-5Mm Thickness Capacity, Single Slide Rail Design, 1.9Kg Lightweight Clamp for Thin Materials

Product Description:The Small Flat Panel Clamp is a fixture designed for holding thin flat materials during machining, assembly, or inspection processes. Its 0-5mm clamping thickness range accommodates sheets, panels, and plates requiring secure positioning. The maximum clamping area of 120x120mm provides capacity for small to medium workpieces. A single slide rail design allows unidirectional movement via a right-hand threaded rod; rotating the adjustment roller moves the movable side while the opposite side remains fixed. Quick installation is achieved by placing the clamp in the positioning slot and rotating to secure. Technical Specifications:Product Type: Small Flat Panel ClampExternal Dimensions: 180 mm (L) x 140 mm (W) x 90 mm (H) / 7.1 x 5.5 x 3.5 inches (height includes locking knob)Mounting Dimensions: 125 x 125 mm / 4.9 x 4.9 inches (4 holes Ø6.5mm, countersunk Ø10mm depth 7mm)Maximum Clamping Range: 120 x 120 mm / 4.72 x 4.72 inchesClamping Thickness: 0 – 5 mm / 0 – 0.2 inchesNet Weight: 1.9 kg / 4.2 lbsPackage Includes:1 x Small Flat Panel ClampImportant Usage & Safety Notes:1.Setup: Install the clamp on a workbench using the M16 mounting hole or the four mounting holes (Ø6.5mm) if additional securing is needed.2.Workpiece Positioning: Place the material within the clamping area. Adjust the movable side using the roller until the workpiece is secured.3.Clamping: Rotate the adjustment roller to apply appropriate pressure. Avoid overtightening which may damage thin materials.4.Operation: Ensure the workpiece is securely held before starting any machining or assembly work.5.Color Note: Product color may vary slightly due to lighting conditions and display settings during photography.

• [Designed for Thin Material Clamping]Engineered specifically for clamping thin sheets and panels. The clamping thickness range of 0-5mm accommodates various flat materials requiring secure holding during processing operations.
• [Quick Installation with Adjustable Positioning]Quick fixture installation allows users to position the clamp according to workpiece size. Place in the positioning slot and rotate to secure in place.
• [120x120mm Maximum Clamping Range]Maximum clamping area measures 120x120mm / 4.72x4.72 inches, providing capacity for small to medium flat workpieces. The clamping mechanism applies even pressure across the surface.

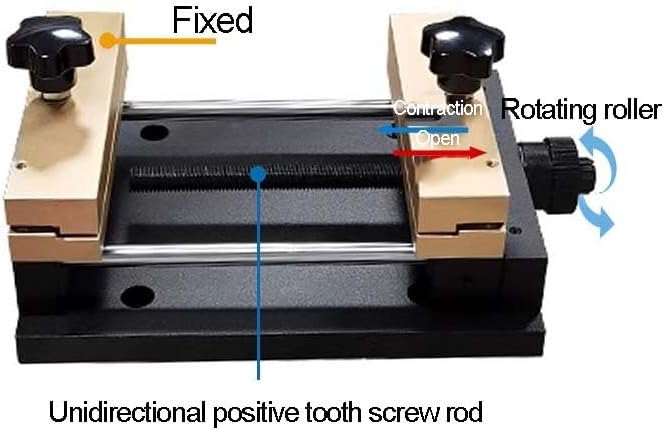

• [Single Slide Rail Design ]Features unidirectional sliding operation using a right-hand threaded rod. Rotating the adjustment roller moves the movable side while the opposite side remains fixed, allowing rapid positioning and efficient clamping.
• [Aluminum Alloy Construction with 1.9kg Weight]Constructed from aluminum alloy . The fixture weighs 1.9kg / 4.2 lbs, making it portable while maintaining sufficient rigidity for workshop applications.
